S6025 Fluid Level Switch

S6061SF-05 Fire Smoke Fire Smoke Damper Actuator

Specially designed for small and medium air damper and control unit used in air volume system. Because of its small size and flexible control, it usually used in such places where the space is limited.

S6061SF-05 Fire Smoke Fire Smoke Damper Actuator

Features of S6061SF-05Fire Smoke Fire Smoke Damper Actuator

  • ON/OFF or 0-10V
  • Shaft size up to 12* 12mm
  • Two fixed auxiliary switches
  • With IP54 standard
  • Without Manuel Override
  • 72℃ thermal sensor is optional

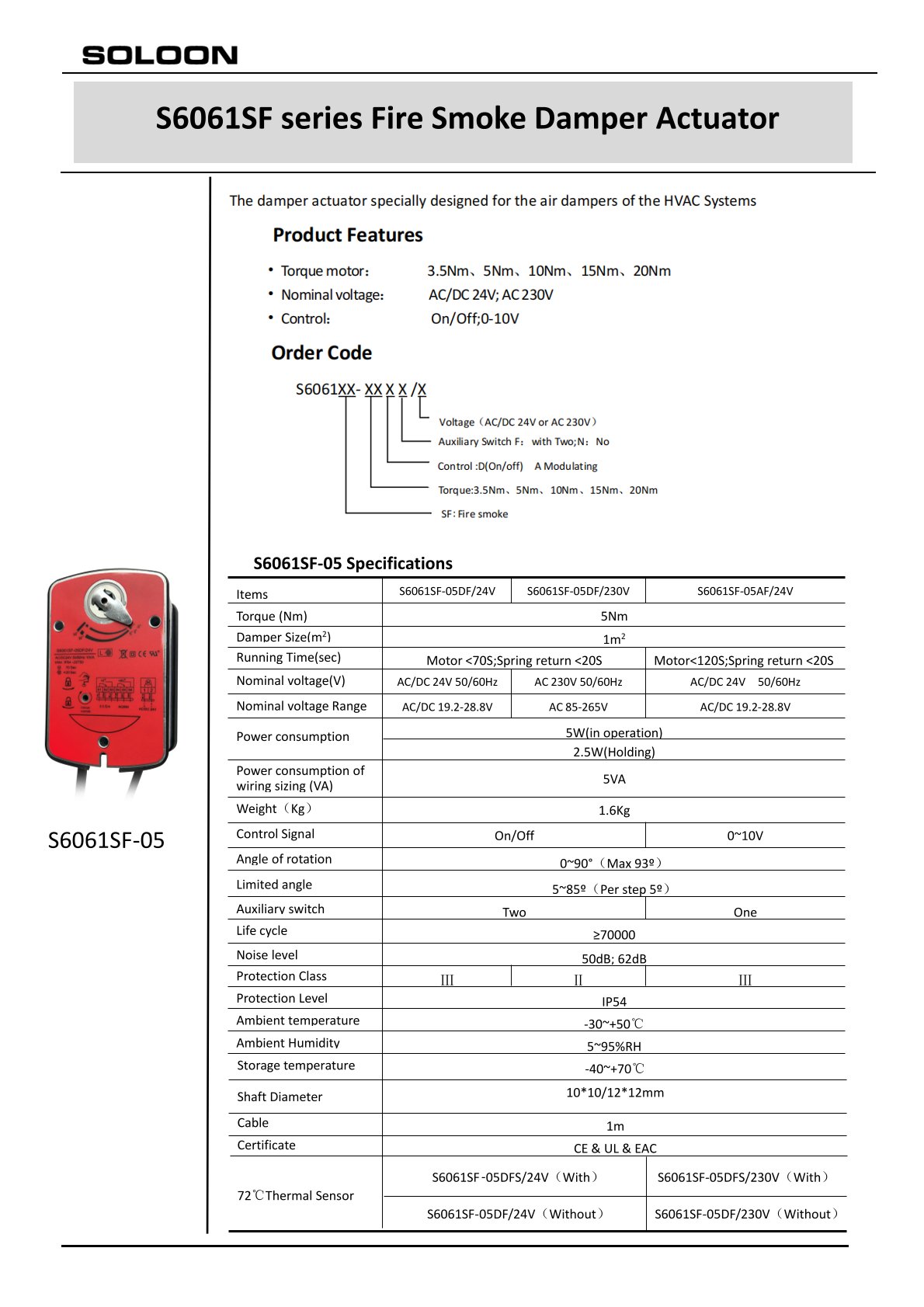

Technical Datasheet of S6061SF-05Fire Smoke Fire Smoke Damper Actuator

Item S6061SF-






Torque 5Nm
Damper area 1m2
Power supply 24VAC/DC




24VAC/DC 50/60Hz
Operating Power Consumption 5W
At end stops Power Consumption 2.5W
Running time Motor 75S;Spring return 20S
Wire size 10VA 7VA
Weight 1.6Kg
Control signal On/off 0~10V
Rotation angle 0~90°(max 93º)
Auxiliary switch rating 3(1.5)Amp 250V
Life cycle 70000
Noise level 50dB(A) and 62dB(A)
Electric level
IP protection IP54
Ambient Temperature -20~+50℃
Ambient Humidity 5~95%RH
Storage temperature -40~+70℃
Certificate CE & UL
72℃ thermal sensor S6061SF-05DF(S)/24V(yes) S6061SF-05DF(S)/220V(yes)
S6061SF-05DF/24V  (no) S6061SF-05DF/220V  (no)

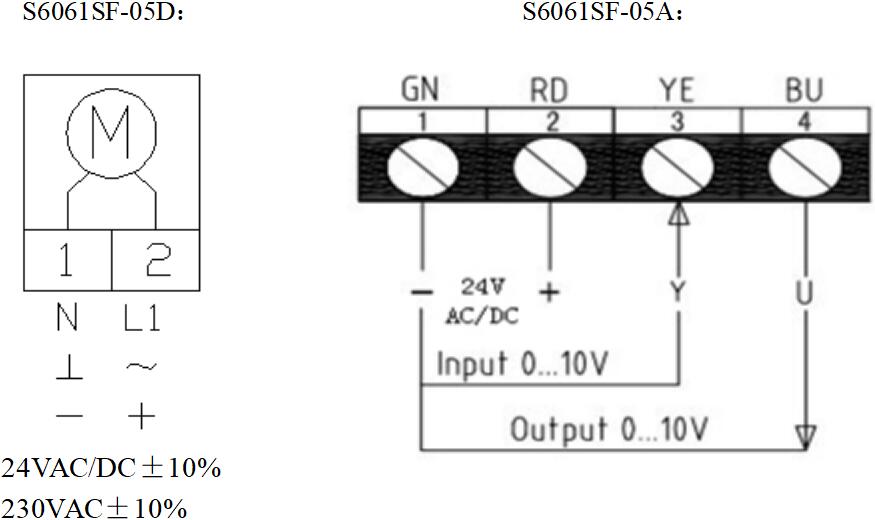

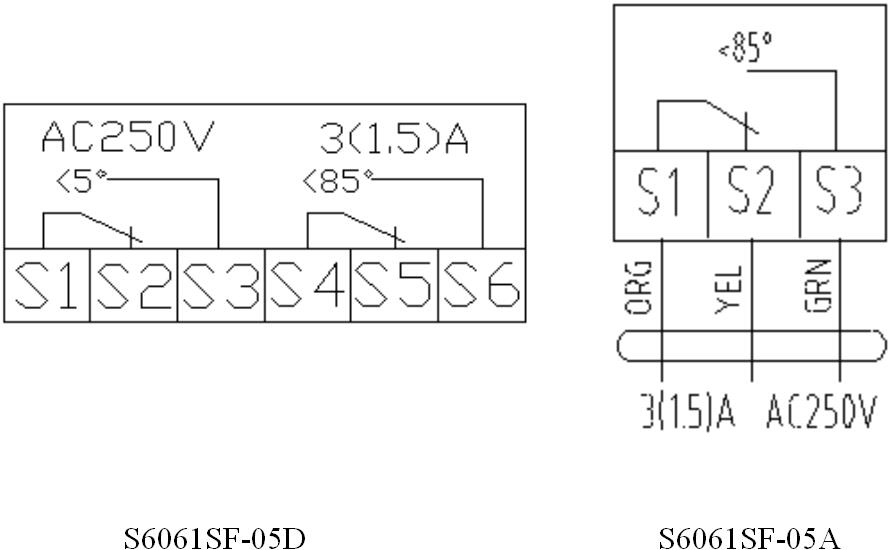

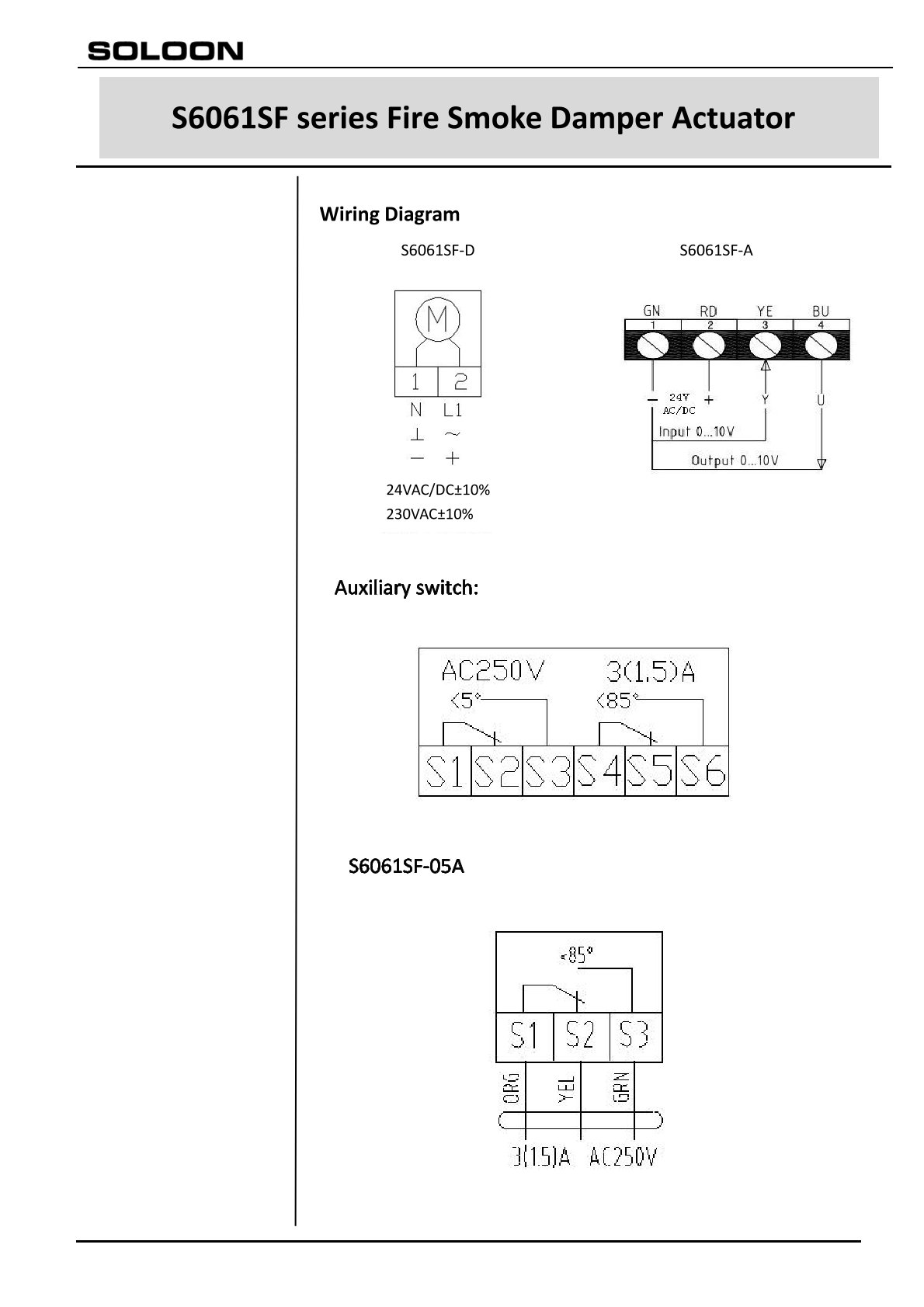

Wiring Diagram of S6061SF-05Fire Smoke Fire Smoke Damper Actuator

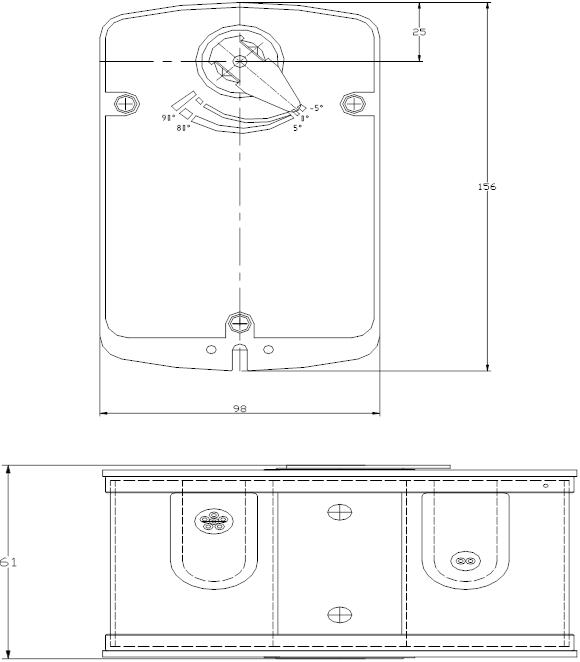

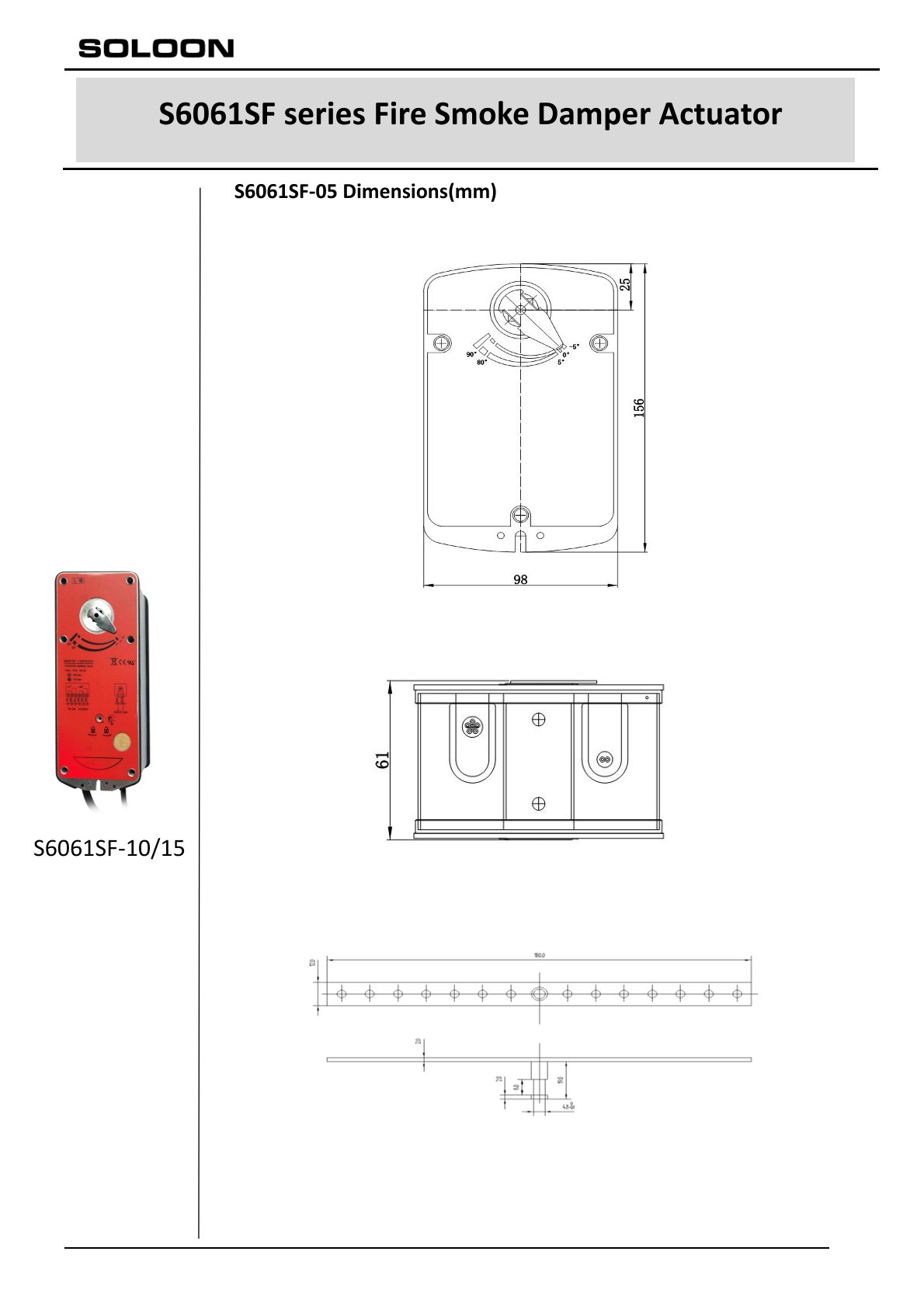

Dimension of S6061SF-05Fire Smoke Fire Smoke Damper Actuator

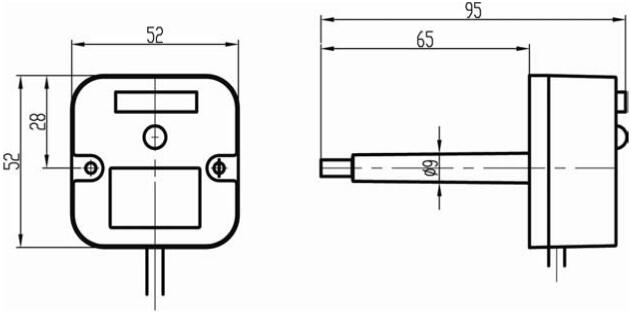

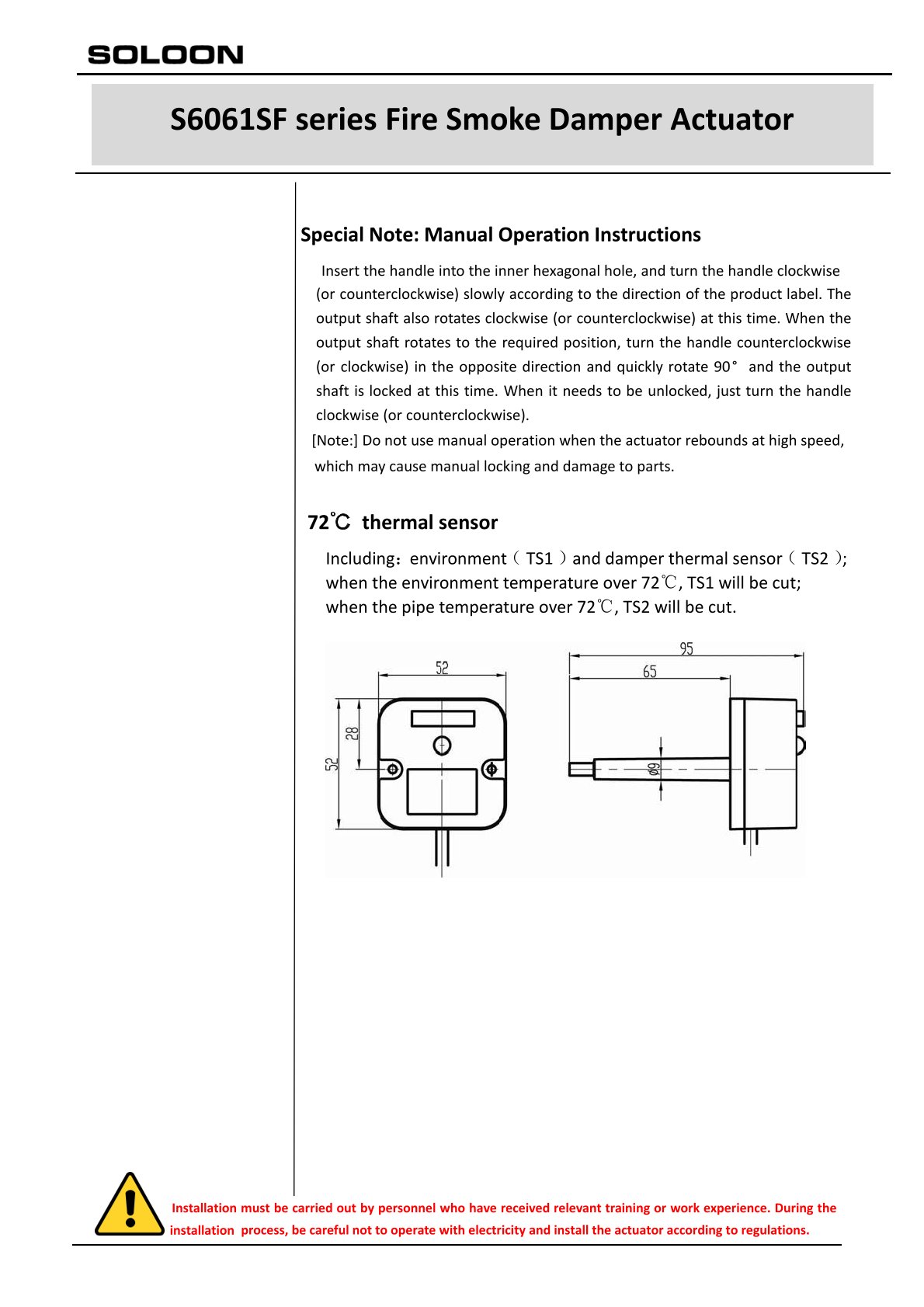

72℃ thermal sensor

Including:environment( TS1 )and damper thermal sensor( TS2 );
when the temperature over 72℃, TS1 will be cut;
when the pipe temperature over 72℃, TS2 will be cut.
