Specially designed for small and medium air damper and control unit used in air volume system. Because of its small size and flexible control, it usually used in such places where the space is limited.

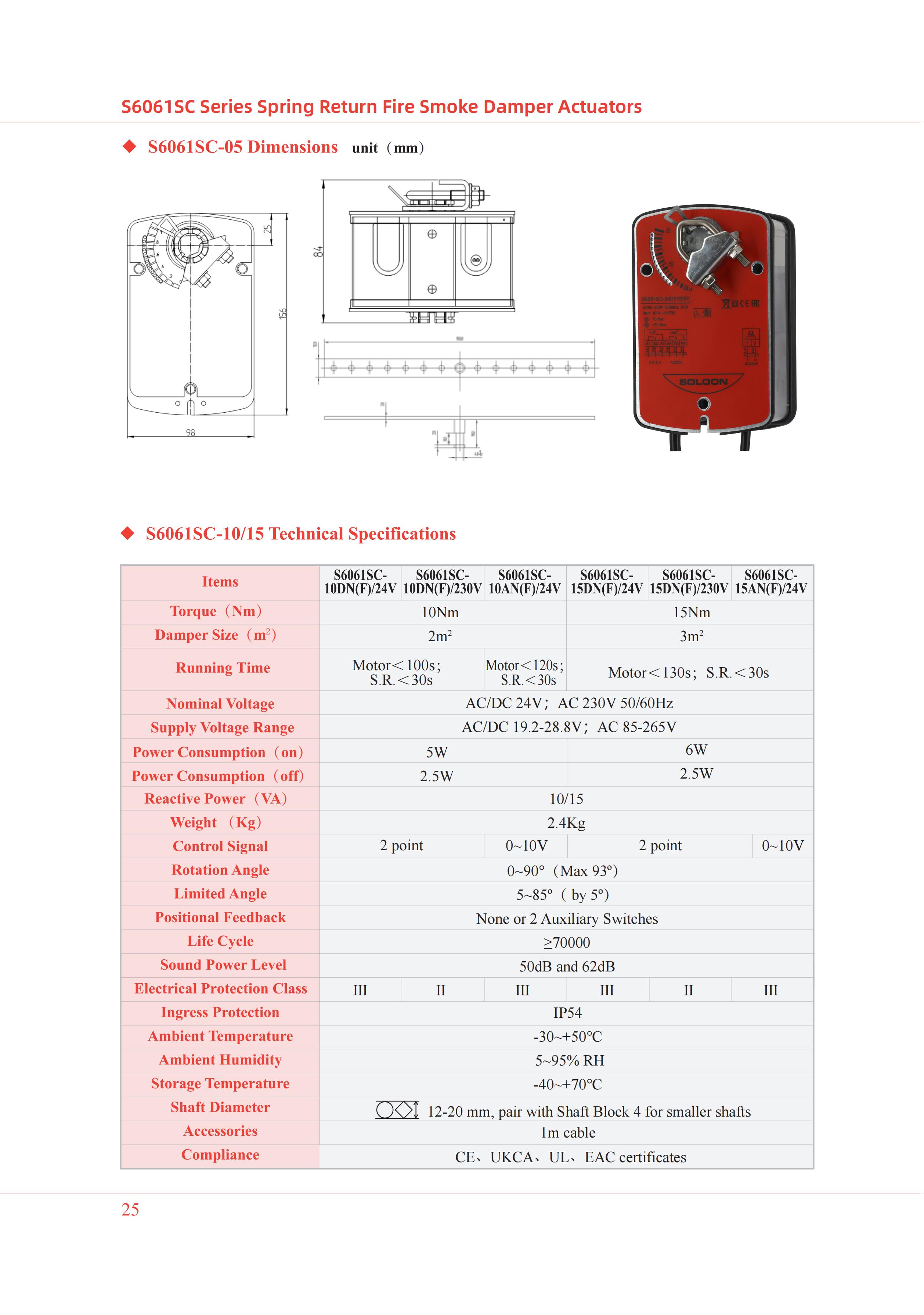

| Item | S6061SC-10DN(F) | S6061SC-10DN(F) | S6061SC-10AN(F) | S6061SC-15DN(F) | S6061SC-15DN(F) | S6061SC-15AN(F) |
| Torque | 10Nm | 15Nm | ||||
| Damper area | 2m2 | 3m2 | ||||
| Power supply | 24VAC/DC, 230VAC 50/60Hz | AC100-240V | 24VAC | |||
| Operating Power Consumption | 5W | 6W | ||||
| At end stops Power Consumption | 2.5W | 2.5W | ||||
| Wire size | 10VA | 7VA | 10VA | 7VA | ||
| Connection cable | D type power：1m cable 2*0.75m2 A type power：1m cable 4*0.5 m2 | |||||

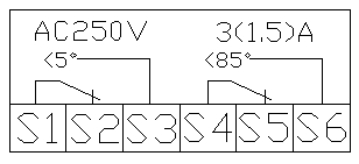

| Auxiliary switch (F）：1m cable 6*0.5 m2 | ||||||
| Control signal | On/off | 0~10V | On/off | 0~10V | ||
| Running time | Motor≤100S；Spring return≤20S | Motor≤130S；spring return≤20S | ||||
| Rotation angle | 0~90°(Max 93º） | |||||
| Limited angle | 5~85º（Per step5º） | |||||
| Indicate | Mechanical indicator | |||||
| Weight | 2.4Kg | |||||
| Life cycle | 70000 | |||||
| Noise level | 50dB(A) and 62dB(A) | |||||
| Electric level | Ⅲ | Ⅱ | Ⅲ | Ⅲ | Ⅱ | Ⅲ |
| IP protection | IP54 | |||||
| Ambient Temperature | -20~+50℃ | |||||
| Ambient Humidity | 5~95%RH | |||||
| Certificate | CE & UL | |||||

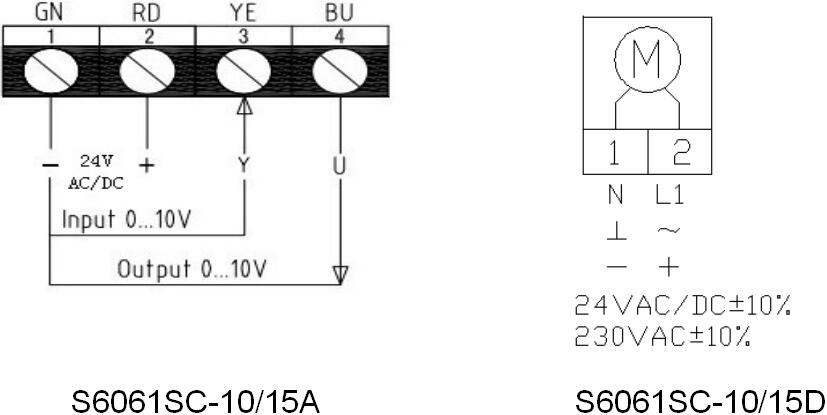

Modulating damper actuator can be controlled by 0-10V
