S6025 Fluid Level Switch

S6061NS-10/15DF Non-Spring Return Fire Smoke Damper Actuator

The damper actuator is specially designed for small and middle air damper and terminal control unit of air volume system. Due to the small size and flexible control, also usually used in space where is limited.

S6061NS-10/15DF Non-Spring Return Fire Smoke Damper Actuator

Features of S6061NS-10/15DF Non-Spring Return Fire Smoke Damper Actuator



  • ON/OFF
  • Shaft size up to 12*12mm
  • Two fixed auxiliary switches
  • With IP54 standard
  • Manuel Override

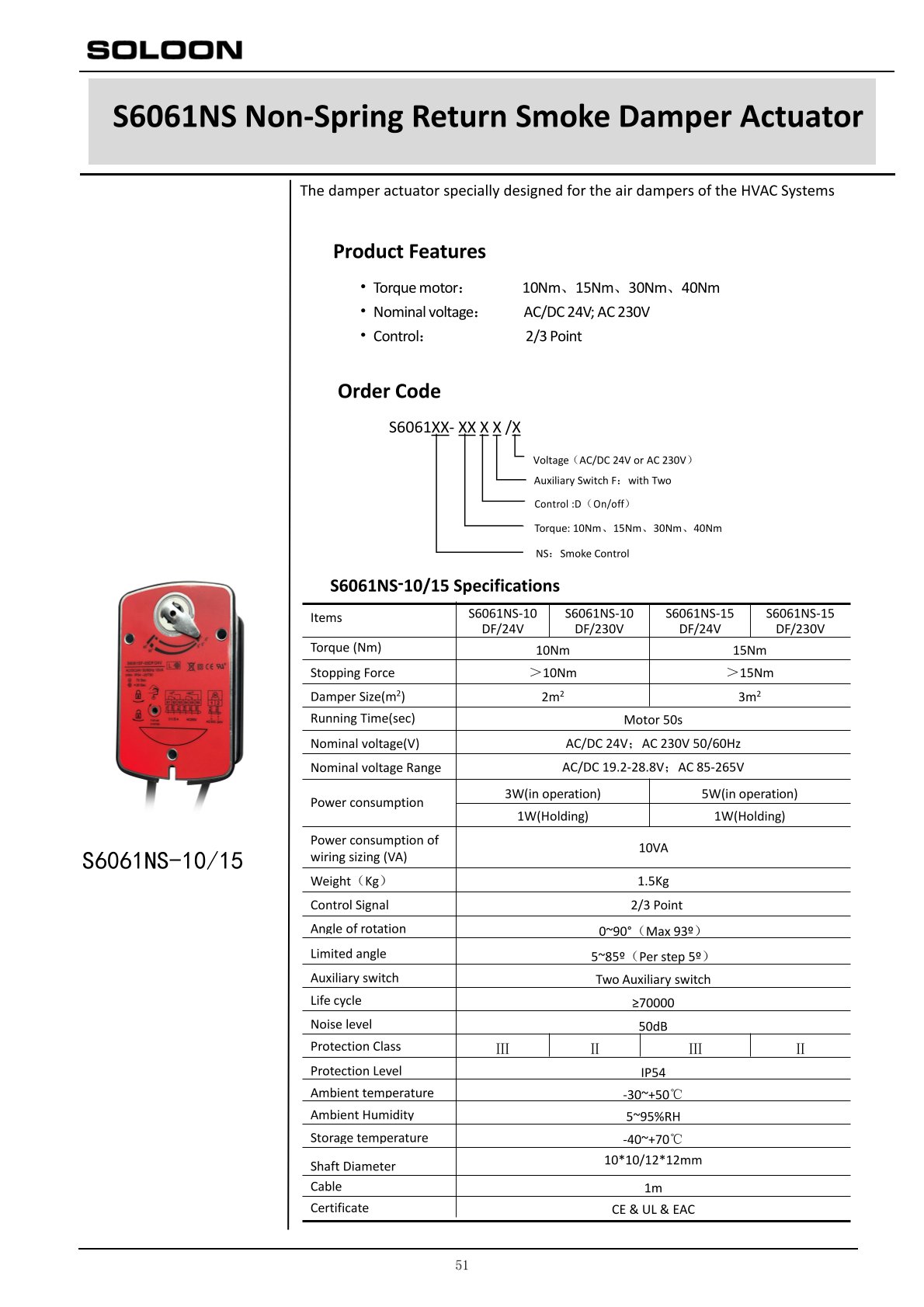

Technical Datasheet of S6061NS-10/15DF Non-Spring Return Fire Smoke Damper Actuator



Item S6061NS-10DF/24V S6061NS-10DF/230V S6061NS-15DF/24V S6061NS-15DF/230V
Torque 10Nm 15Nm
Damper size 2m2 3m2
Running time Motor 30S~40S
Power supply 24VAC/DC 50/60Hz 230VAC 50/60Hz
Operating Power Consumption 3W 5W
At end stops Power Consumption 1W 1W
Wire size 10.5
Weight 1.5Kg
Control signal 2/3 point
Rotation angle 0~90°（Max 93º）
Auxiliary switch rating 3（1.5）Amp 250V
Life cycle 70000
Noise Level 50dB(A)
Electric level Ⅲ Ⅱ Ⅲ Ⅱ
IP protection IP54
Ambient Temperature -20~+50℃
Ambient Humidity 5~95%RH
Storage temperature -40~+70℃
Certificate CE & UL

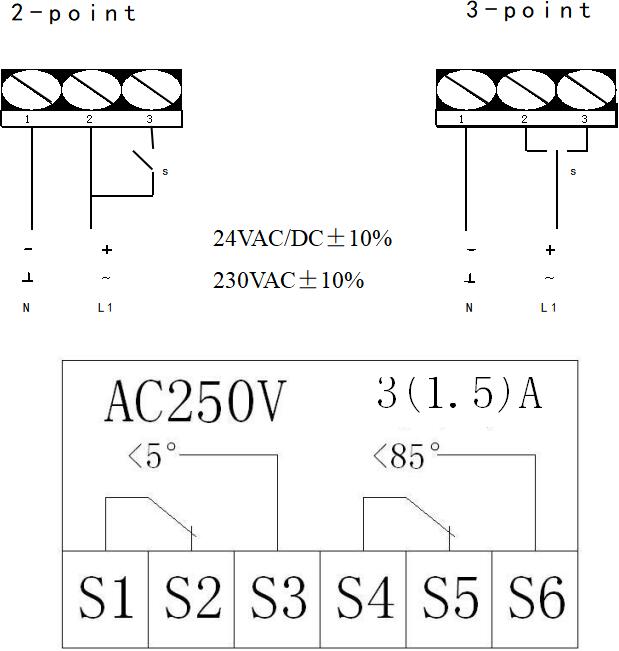

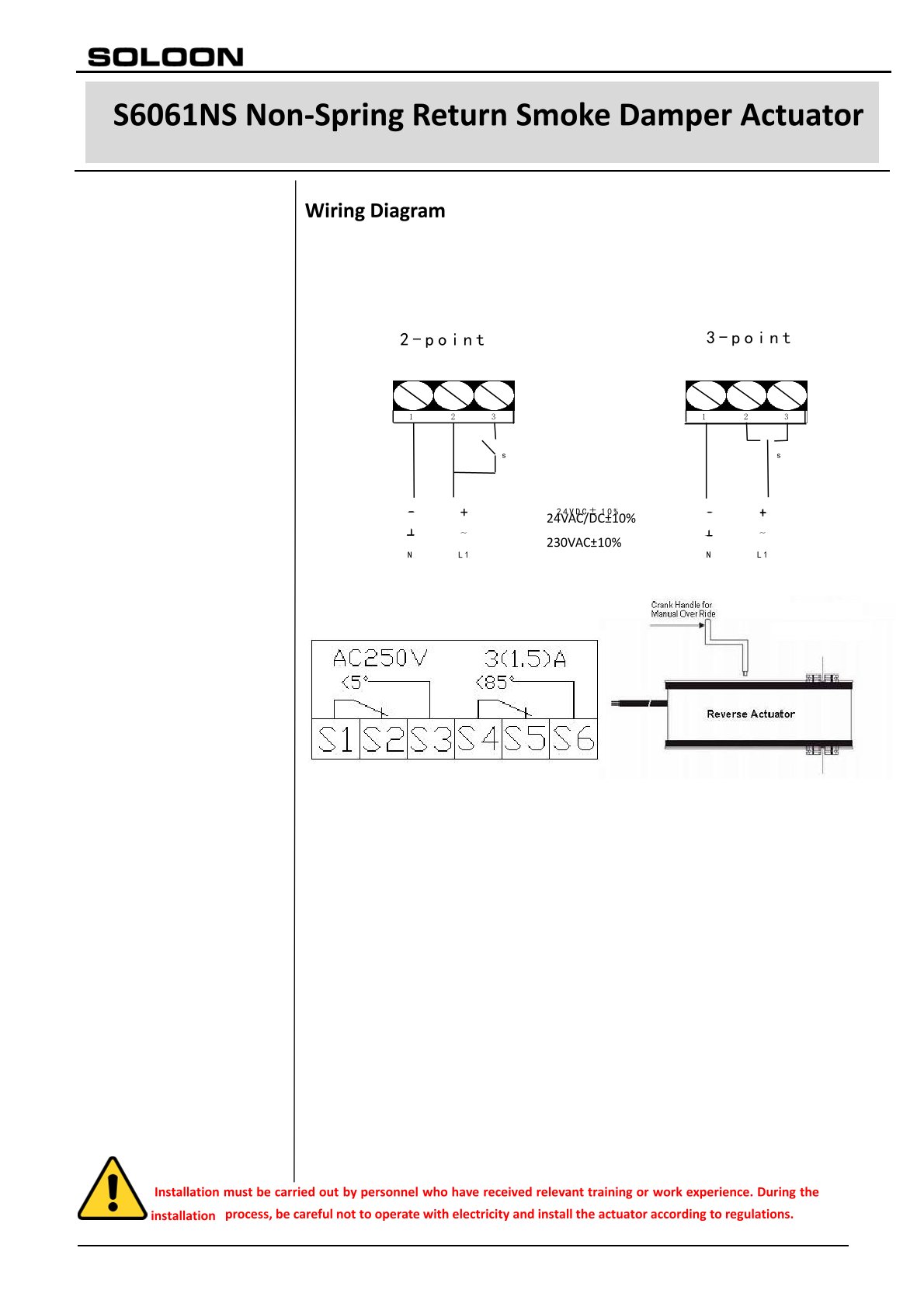

Wiring Diagram of S6061NS-10/15DF Non-Spring Return Fire Smoke Damper Actuator

s6061ns-10-15df-non-spring-return-fire-smoke-damper-actuator-2


S6061NS-10/15DF

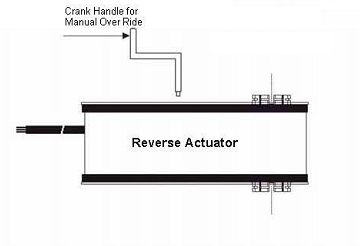

s6061ns-10-15df-non-spring-return-fire-smoke-damper-actuator3

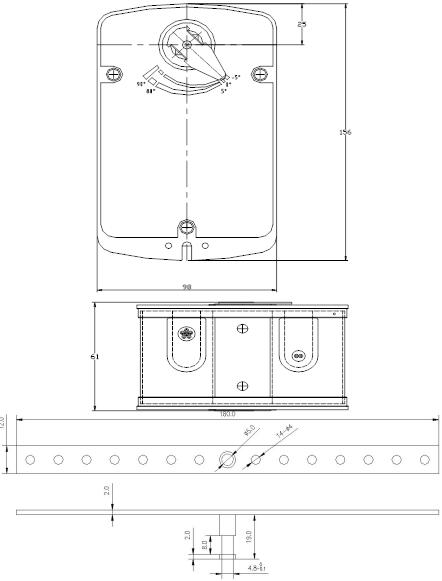

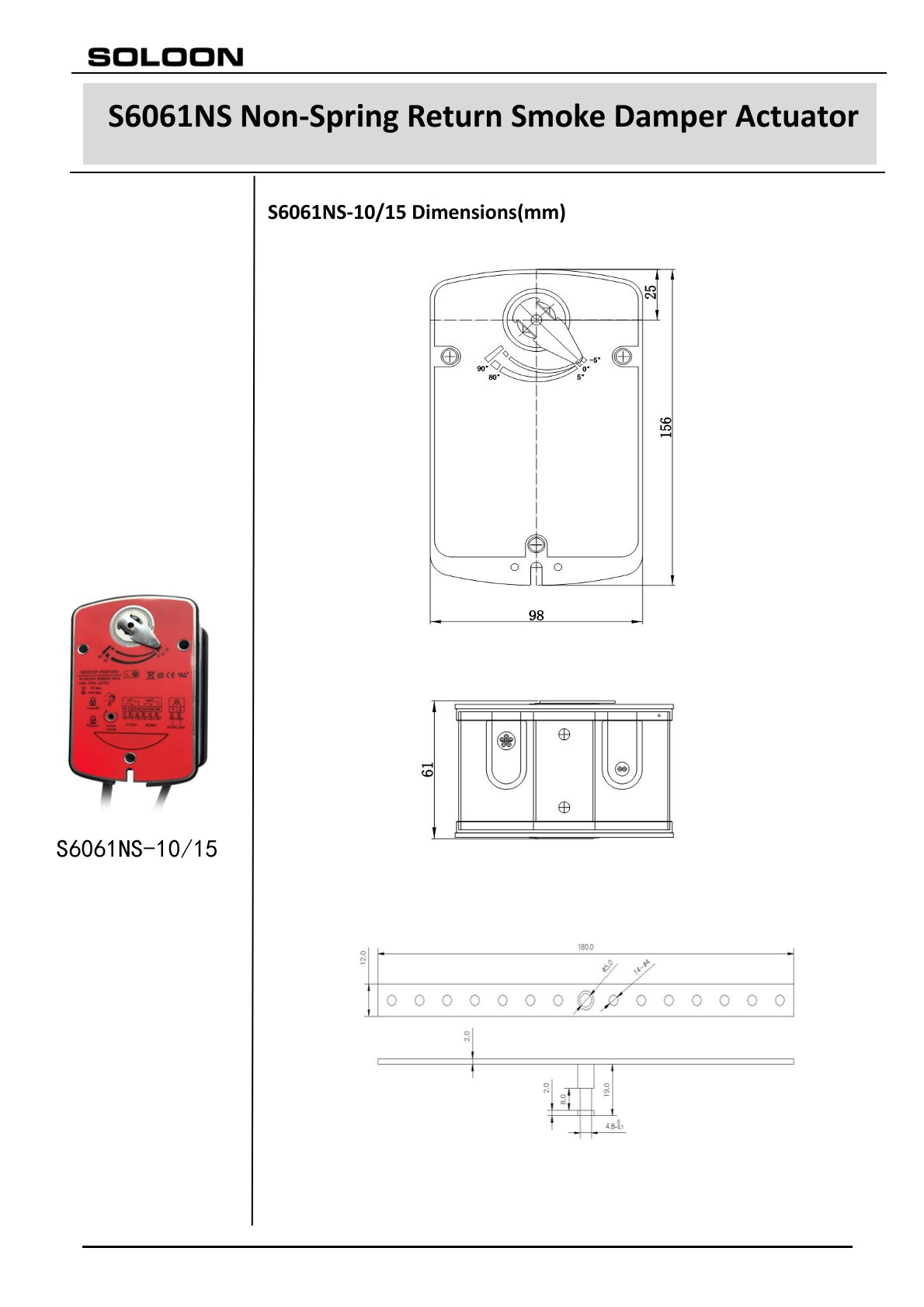

Dimension of S6061NS-10/15DF Non-Spring Return Fire Smoke Damper Actuator



s6061ns-10-15df-non-spring-return-fire-smoke-damper-actuator4
