S6061-04A Standard Damper Actuator (Non Fail-Safe Damper Actuators)

The damper actuator is specially designed for small and middle air damper and terminal control unit of air volume system. Due to the small size and flexible control, usually used in space where is limited.

There is a characteristic of this damper actuator, the hammer type adapter combines the rotation angle and position indicate.

Features of S6061-04A Standard Damper Actuator (Non Fail-Safe Damper Actuators)

0-10V or 4~20mA.
Actuator and damper shaft are bolt-on by screw.
Can parallel connections 20 actuators at most.

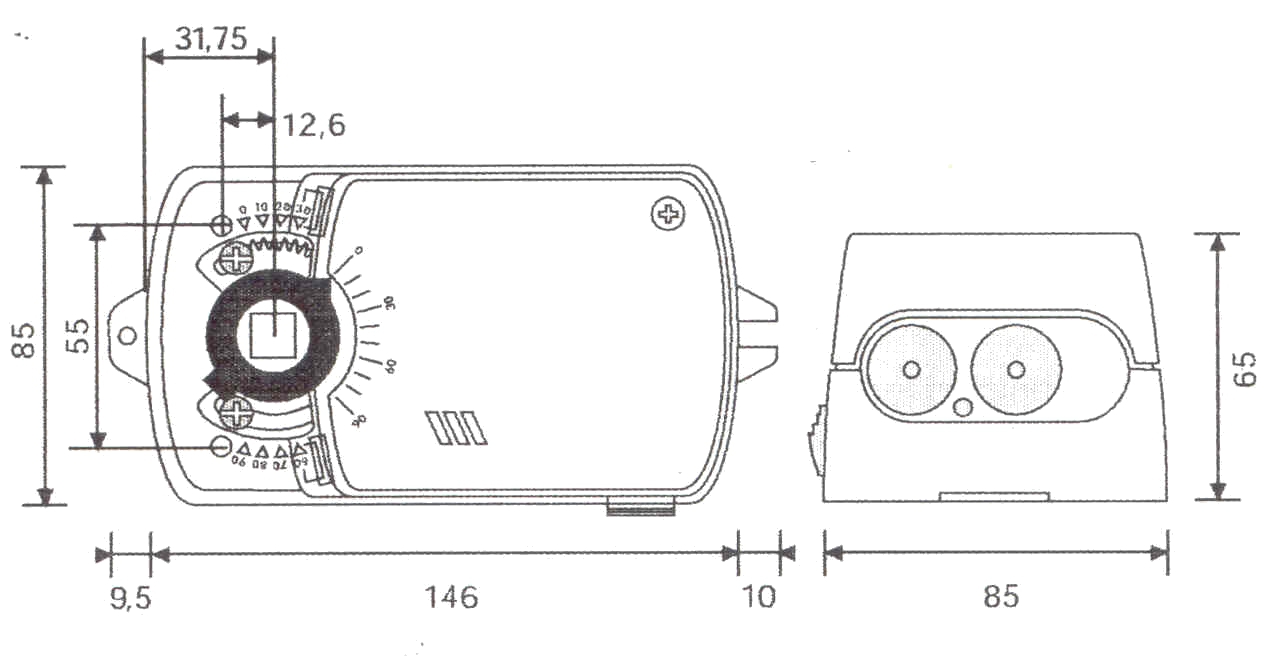

Maximum round shaft φ16 and square shaft 12*12mm.
Manuel Override
Torque 04NM

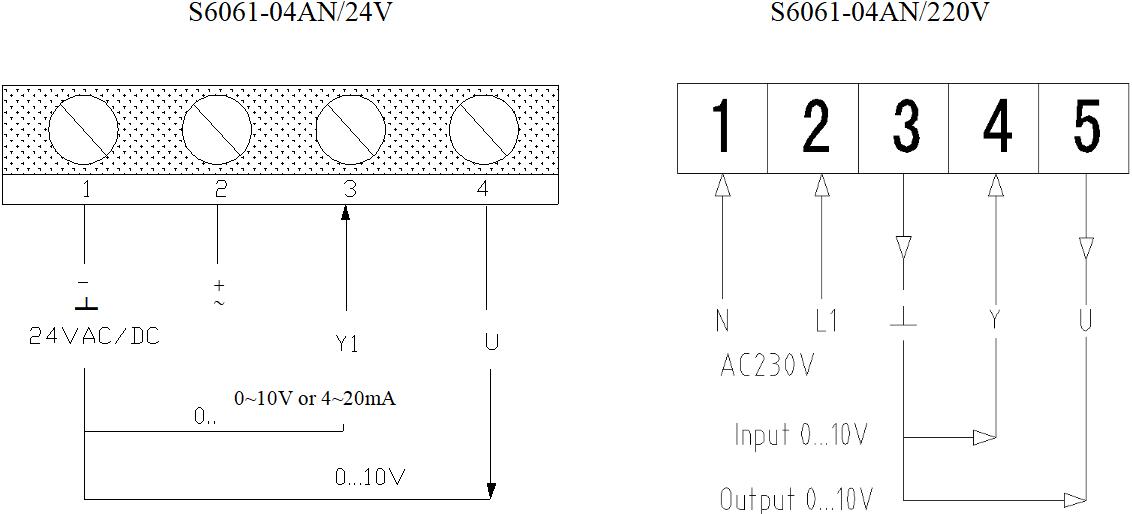

Power supply AC/DC 24V or AC 230V
Modulating

Technical Datasheet of S6061-04A Standard Damper Actuator (Non Fail-Safe Damper Actuators)

Item	Unit	S6061-04AN	S6061-04AN		S6061-04AN/I
Torque	Nm	4
Damper area	m²	1
Running time	sec	30~40 35 35
Power supply	V	24VAC/DC	220VAC		24VAC/DC
Frequency	Hz	50/60
Running consumption	W	2.5 2.5
Maintaining consumption	W	0.85 0.85
Weight	Kg	1.0
Control signal		0~10V DC				4~20mA
Position signal		Potentiometer

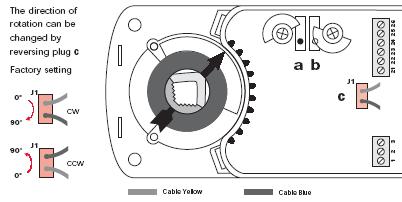

Rotation angle		0~90º（Max 93º）
Limited angle		5～85º（per step 5º）
Life cycle		>70 000
Noise Level		45dB(A)
Electrical level		Ⅱ
Protection level		IP44 or IP54
Ambient Temperature		-20~+50℃
Ambient Humidity		5-95%RH
Storage temperature		-40~+70℃
Certificate		CE /UL ———- ———-		CE
